Scope

GB/T 1962.2-2001 is the English-translated version of 注射器、针头及其他特定医疗设备用6%(鲁尔)锥度接头—第2部分:锁定接头.

This standard specifies dimensions, requirements and test methods for the lock fittings of conical fittings with a 6% (Luer) taper for syringes, needles and certain other medical equipment (e.g. transfusion equipment).

The requirements apply to fittings made of rigid and of semi-rigid materials and include test methods, but exclude provision for more flexible or elastomeric materials.

Found what you need?

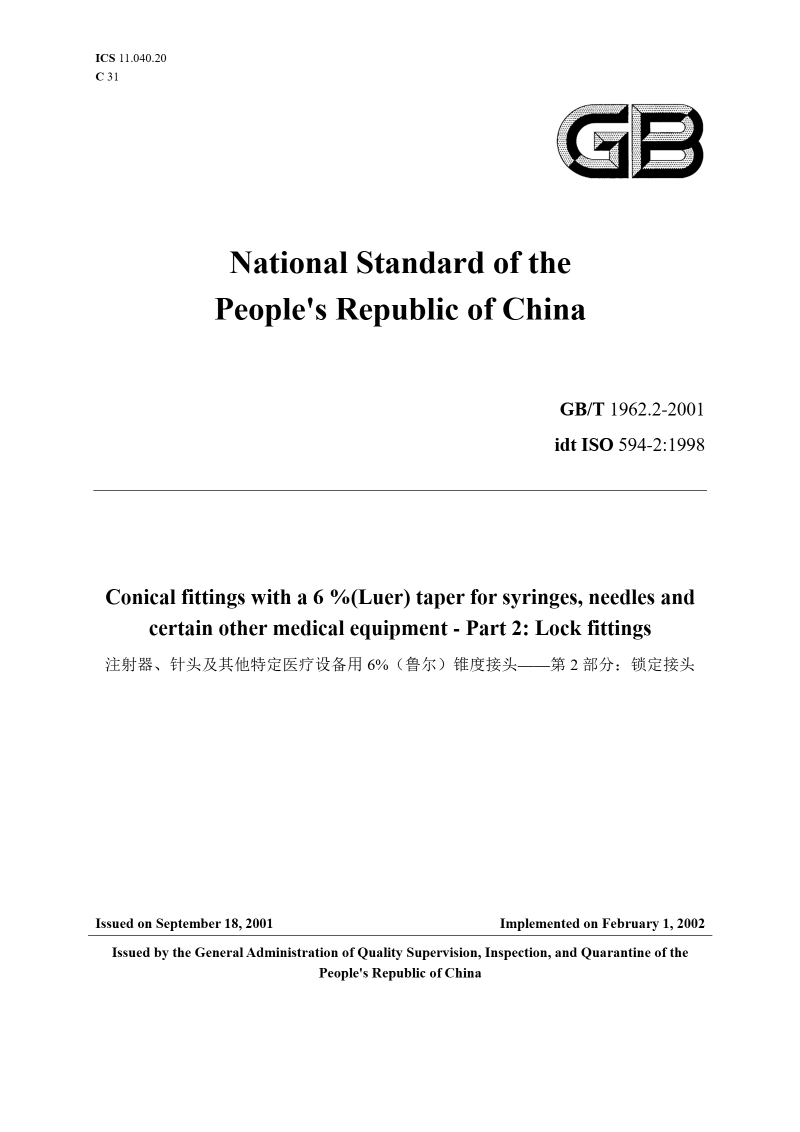

Document preview — GB/T 1962.2-2001

National Standard of the People's Republic of China

ICS
11.040.20
Classification
C 31

Issued by: the General Administration of Quality Supervision, Inspection, and Quarantine of the People's Republic of China

Contents

  • C 31 National Standard of the
  • Foreword
  • 1 Scope
  • 2 Normative references
  • 3 Dimensions
  • 4 Requirements
  • 5 Test methods

C 31 National Standard of the

Foreword

This standard is identical (IDT) to ISO 594-2:1998 Conical fittings with 6% (Luer) taper for syringes, needles, and certain other medical equipment - Part 2: Lock fittings.

This standard is proposed by the National Medical Products Administration.

This standard is under the jurisdiction of the National Technical Committee 95 on Syringe (Needle) for Medical Use of the Standardization Administration of China (SAC/TC95).

Drafting institutions of this standard: National Medical Products Administration, Shanghai Medical Device Quality Supervision and Inspection Center.

Main drafters of this standard: Fu Guobao, Zhao Jing.

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO member bodies). The work of preparing International Standards is normally carried out through ISO technical committees. Each member body interested in a subject for which a technical committee has been established has the right to be represented on that committee. International organizations, governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

Draft International Standards adopted by the technical committees are circulated to the member bodies for voting. Publication as an International Standard requires approval by at least 75% of the member bodies casting a vote.

International Standard ISO 594-2 was prepared by Technical Committee ISO/TC84, Medical devices for injections.

This second edition of ISO 594-2 cancels and replaces the first edition (ISO 594-2:1991), of which it constitutes a partial technical revision.

1 Scope

This standard specifies dimensions, requirements and test methods for the lock fittings of conical fittings with a 6% (Luer) taper for syringes, needles and certain other medical equipment (e.g. transfusion equipment).

The requirements apply to fittings made of rigid and of semi-rigid materials and include test methods, but exclude provision for more flexible or elastomeric materials.

1 It is not practicable to define the characteristics of rigid or semi-rigid materials with precision, but glass and metal may be considered as typical rigid materials. In contrast, many plastic materials may be regarded as semi-rigid.

2 Normative references

The following normative documents contain provisions which, through reference in this text, constitute provisions of this standard. At the time of publication, the editions indicated were valid. All the standards will be revised, and parties to agreements based on this standard are encouraged to investigate the possibility of applying the most recent editions of the normative documents indicated below.

3 Dimensions

3.1 Male and female 6% (Luer) conical fittings

The dimensions and tolerances for the male and female fittings specified in GB/T 1962.1 apply to the relevant conical part of the fitting described in clause 4 of this standard.

3.2.1 Rigid material

The dimensions of male and female lock fittings made of rigid materials shall be as shown in Figures 1 to 4 and as given in Table 1.

3.2.2 Semi-rigid material

For fittings made using semi-rigid materials, because of their nature it is not possible to specify the fittings dimensions accurately. Design and dimensions of fittings made of these materials may vary from those designated in Figures 1 to 4 and given in Table 1. However, the fittings shall meet the specified performance requirements when fitted to reference fittings as specified in 5.1. 1) Double-start, right-hand thread of 2.5 mm pitch. For other dimensions, see Figure 1. 1 If a female 6% (Luer) conical lock fitting has lugs in a plane inclined to the axis of fitting, the lugs should form a part of the thread form shown in Figure 4. In this case, "V" does not apply. 2 Variants B and C are intended to be used for the design of rigid fittings only. 3 To ensure compatibility with existing rigid fittings, a maximum K = 0.8 mm is preferred. 2) For other dimensions, see Figure 3. Maximum outside diameter of female lock fitting at base of lugs or maximum inside diameter of external thread. This diameter shall not be increased for a distance from the hub face of 5.5 mm S Lug crest width or thread crest width of female lock fitting with lugs or external thread 0.3min. 0.27max. […]

4 Requirements

4.1 Dimensions

When tested with the appropriate gauge, the conical part of the lock fitting shall comply with GB/T 1962.1.

4.2 Leakage

4.2.1 Liquid leakage

When the fitting is tested in accordance with 5.2, there shall be no leakage sufficient to form a falling drop.

4.2.2 Air leakage

Continued formation of air bubbles shall not be evident under the test conditions described in 5.3. Bubbles formed during the first 5 s shall be disregarded.

4.3 Separation force

When the fitting is tested in accordance with 5.4, it shall remain attached to the reference fitting.

4.4 Unscrewing torque

When the fitting is tested in accordance with 5.5, it shall remain attached to the reference fitting.

4.5 Ease of assembly

When the fitting under test is mounted by hand on the appropriate reference fitting in accordance with 5. […]

4.7 Stress cracking

When the fitting is tested in accordance with 5.8, there shall be no evidence of stress cracking of the fitting. […]

5 Test methods

5.1 General

Tests shall be carried out using the appropriate reference fitting; reference fittings are shown in Figures 5 to 8. The reference fittings shall be manufactured from hardened corrosion-resistant materials with a surface roughness value, Ra, not exceeding 0.8 μm (in accordance with GB/T 1031) on critical surfaces. The dimensions of the conical part of these reference fittings shall be in accordance with those specified in Figures 4 and 5 of GB/T 1962.1.

5.2 Liquid leakage from fitting assembly under pressure

5.2.1 Connect the fitting to be tested to a reference fitting, the dimensions of which are in accordance with those shown in Figure 5 or Figure 7, as appropriate. Dry both fittings. Assemble the fittings by applying an axial force not exceeding 27.5 N while applying a torque not exceeding 0.12 N•m.

5.2.2 Introduce water into the assembly and expel the air. Ensure that the outside of the fitting assembly is dry.

5.2.3 With the axis of the lock fitting horizontal, seal the assembly outlet and bring the internal water pressure to an effective pressure of 300 kPa to 330 kPa and maintain the pressure for 30 s.

5.3 Air leakage into fitting assembly during aspiration

5.3.1 General

Other test methods may be used if good correlation is shown with the test methods given in 5.3.2 or 5.3.3. In cases of dispute, the methods given in this standard shall be the referee methods.

5.3.3 Female fitting

Follow the same test procedure as specified in 5.3.2, but using a syringe with a male reference fitting, the dimensions of which are in accordance with those shown in Figure 7, to mate with the female fitting under test.

5.6 Ease of assembly

Mount by hand the fitting under test on the male or female reference fitting (see Figures 5 and 7) as appropriate. […]

......
