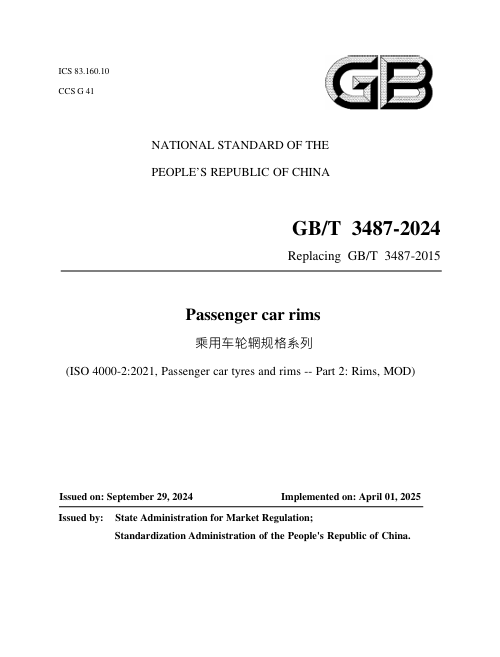

GB/T 3487-2024Passenger car rims (English PDF)

Foreword

This document was drafted in accordance with the rules given in GB/T 1.1-2020 "Directives for standardization - Part 1: Rules for the structure and drafting of standardizing documents".

This document replaces GB/T 3487-2015 "Rims for passenger car". Compared with GB/T 3487-2015, in addition to structural adjustments and editorial changes, the main technical changes in this document are as follows:

side (see Figure 1, Figure 2 of this Edition; Figure 1, Figure 2 of Edition 2015);

- Modified the provisions of the "Snap-on valve hole" section (see 5.4.2 of this

- Added relevant provisions for "Compression-type valve hole" (see 5.4.3 of this Edition).

The modification of this document adopted ISO 4000-2:2021 "Passenger car tyres and rims -- Part 2: Rims".

Compared with ISO 4000-2:2021, this document has more structural adjustments. See Annex A for a comparison of the structural number changes between the two documents.

The technical differences between this document and ISO 4000-2:2021 and their reasons are as follows:

- ISO 3911 (see Chapter 3 of this document) was replaced by the normative reference GB/T 2933 to adapt to China's technical conditions;

4000-2:2021) has been deleted, and the relevant content has been deleted;

- Added "Rim profile size code" and its illustration (see Chapter 4 of this document) for ease of use;

- Deleted rim specifications and marking (see Chapter 4 of ISO 4000-2:2021) as their contents are already specified in the referenced standards;

(see the footnote of Figure 4 of this document; the footnote of Figure 3 in ISO 4000-2:2021). Figure 4 has been deleted because this provision in ISO 4000- 2:2021 is incorrect;

Figure 5 of this document; Figure 5 of ISO 4000-2:2021). Dimension d (see Table

5 of ISO 4000-2:2021) has been deleted and is now marked directly in Figure 5.

The following editorial changes were made to this document:

- To coordinate with the existing standards, the name of the standard is changed to "Passenger car rims";

- A note was added to Figure 5: "Due to the different manufacturing processes for machining and punching, the figures shown are general rules."

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. The issuing authority shall not be held responsible for identifying any or all such patent rights.

This document was proposed by China Petroleum and Chemical Industry Federation.

This document shall be under the jurisdiction of National Technical Committee on Tires and rims of Standardization Administration of China (SAC/TC 19).

Main drafters of this document: Gu Zheng, Wen Xiaolei, Wei Jianfeng, Huang Shaobing, Du Juan, Chen Jianming, Qin Long, Li Shuhuan, Zheng Rui, Zhang Jianjun, Chen Xun, Liu Kang, Zhang Dianjie, Zhu Zuoyong, Du Fan, Yin Qingye, Li Miaomiao, Mou Shouyong, Xu Lihong, Chen He.

Versions of standard substituted by this document are:

- It was first published in 1983 as GB 3487-1983 "Rim contours for motor vehicles".

It was first revised in 1989. It was second revised in 1996. It was third revised in 2005.

- This is the fifth revision.

1 Scope

This document specifies the specifications, profiles and dimensions of 5° deep groove rims for passenger car wheels and tyre mating areas.

This document applies to rims for passenger car wheels.

2 Normative references

The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.

3 Terms and definitions

4 Rim profile size codes

The rim profile size codes are shown in Figure 1.

C - Flange radius position dimension;

DF - Bead seat flat peak diameter;

R2 - Flange radius; R3 - Bead seat arc radius;

R4 - Groove top arc radius; R5 - Groove bottom arc radius;

R6 - Flange edge fillet radius;

R7 - Groove side arc radius; V - Valve hole or valve groove dimension;

NOTE 1: The dimensions marked with * are related to the installation and removal of the tire on the rim and are the minimum outline dimensions and position dimensions of the rim groove.

NOTE 2: The mounting side is the side from which the tire is installed on the rim or removed from it. For multi-piece rims, the mounting side is the side with the removable flange and bead seat.

5 5° deep groove rim (5°DC)

Annex A Comparison on structure numbers between this document and ISO 4000-2:2021

Table A.1 gives a comparison list on structure numbers between this document and ISO 4000-2:2021.
