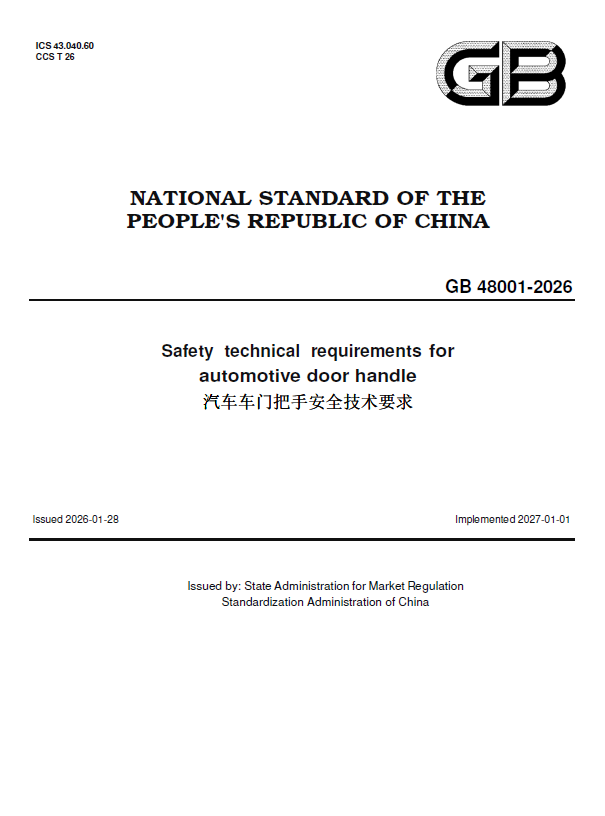

GB 48001-2026Safety technical requirements for automotive door handle (English PDF)

Foreword

This document has been drafted in accordance with the rules given in GB/T 1.1—2020 Directives for standardization — Part 1: Rules for the structure and drafting of standardizing documents.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. The issuing body of this document shall not be held responsible for identifying patents.

This document was proposed by, and is under the jurisdiction of, the Ministry of Industry and Information Technology of the People's Republic of China.

This document specifies the technical requirements, test methods and determination of the same type for automotive door handles.

This document applies to the door handles of category M1 and category N1 vehicles and of multi-purpose goods vehicles. Door handles of other vehicles may be dealt with by reference to this document.

The contents of the following documents constitute indispensable provisions of this document through normative reference in the text. For dated references, only the edition corresponding to that date applies. For undated references, the latest edition (including all amendments) applies.

Doors located on the side or the rear of the vehicle which can be opened and closed to allow occupants to enter and leave, including rotating (hinged) opening doors and translational (sliding) opening doors, etc.

Operating mechanism used to open and close a door.

Disengagement of the door lock from the fully latched position or from the secondary latched position, achieving separation of the latch body from the striker (or block).

be opened by operating the door handle.

lock is disengaged by an electrically driven mechanical mechanism; mechanical release means that the door lock is disengaged solely by a mechanical mechanism.

Operating mechanism having the form of a handle, located on the door or near the door frame, used to release the door lock device from outside the vehicle.

divided into electrically released outer door handles and mechanically released outer door handles.

Operating mechanism located on the door or near the door frame, used to release the door lock device from inside the vehicle.

divided into electrically released inner door handles (including the electronic push-button type) and mechanically released inner door handles.

1 Scope

This document specifies the technical requirements, test methods and type identification for automotive door handles.

This document applies to the door handles of vehicles of categories M1 and N1 and of multipurpose goods vehicles; the door handles of other vehicles may refer to it.

2 Normative references

The contents of the following documents constitute indispensable provisions of this document through normative references in the text. For dated references, only the edition corresponding to that date applies to this document. For undated references, the latest edition (including all amendments) applies to this document.

GB 11551, The protection of the occupants in the event of a frontal collision for motor vehicle

GB 15086, Motor vehicle door locks and door retention components - Performance requirements and test methods

GB 38031, Electric vehicles traction battery safety requirements

3 Terms and definitions

For the purposes of this document, the terms and definitions given in GB 11551, GB 15086 and GB 38031 and the following apply.

3.1 door: a hinged or sliding door on the side or rear of the vehicle, opened and closed to let occupants in and out. Note: folding doors, roller doors and simple doors that are easy to fit and remove are excluded. [Source: GB 15086-2013, 2.1, modified]

3.2 door handle: the operating mechanism for opening and closing the door. Note: only the outer door handle and the inner door handle.

3.3 unlatch: the release of the door lock from the fully latched or secondary latched position, separating the latch from the striker. Note 1: when the door lock is engaged it restrains the door, and the door can be opened by operating the door handle. Note 2: unlatching is either electrical, where the lock is released by an electrically driven mechanism, or mechanical, where it is released by a mechanical mechanism only.

3.4 outer door handle: a handle-like operating mechanism near the door or door frame for unlatching the door lock from outside the vehicle. Note: according to its connection to the door lock, it is either an electrically unlatched or a mechanically unlatched outer door handle.

3.5 inner door handle: an operating mechanism near the door or door frame for unlatching the door lock from inside the vehicle. Note: according to its connection to the door lock, it is either an electrically unlatched inner door handle (including the electronic button type) or a mechanically unlatched inner door handle.

Annex A Layout position of door handles

The layout positions of door handles are shown in Figure A.1 to Figure A.4.

Annex B Loading positions for the door handle strength test

The loading positions for the door handle strength test are shown in Figure B.1 to Figure B.5.
