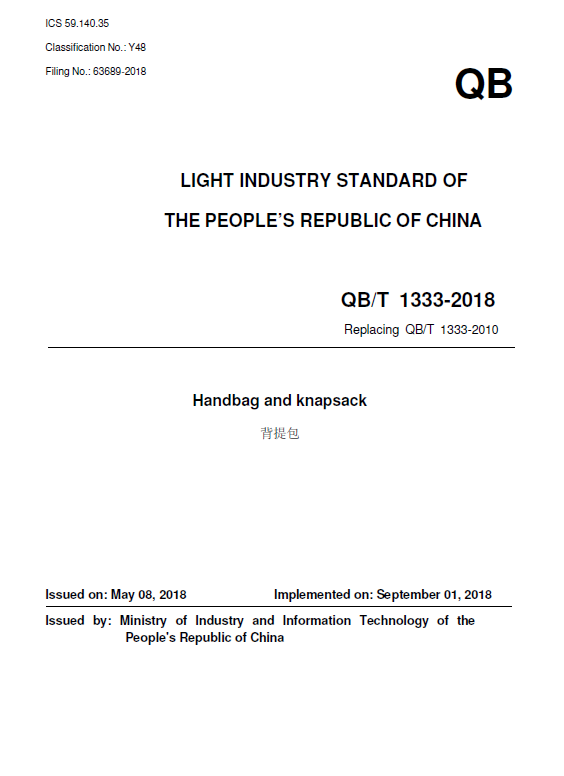

QB/T 1333-2018Handbag and knapsack (English PDF)

4.1 Raw materials and accessories

Select according to related product standards.

4.1.2 Lock

In accordance with QB/T 1586.1 or related product standards.

4.1.3 Magnetic buckle

4.1.4 Zipper

4.1.5 Hardware accessories

4.2 Appearance quality

pulp, discoloration, etc. The surface is flat, the front and back are not disfigured, and there are two rough spots on the back and the bottom. The area is not more than 9 mm2. There are 2 obvious marks and creases.

broken weft, yarn skipping, splitting, loose edges or other defects.

Use sutures suitable for the quality of the fabrics and linings used, Stitching stitch

Match the upper and lower lines, the stitches are straight and the stitch length is even. There shall be no empty needle, missing needle or jump needle in front of the large front cover and front cover. There shall be no more than 15mm long skew. The number of empty needles, missed needles and jumped needles in a single product shall not exceed one. Empty needles, missed needles, and jumped needles shall not exceed 2 places each.

Stitching is straight, the margins are consistent: smooth zipping, no misplacement, lost teeth, no fading Accessories Bright and rust-free, no leakage plating, no burrs, no peeling or falling off Accessory installation Flat, firm The standard sample attached to the product is exactly the same as the material of the handbag and knapsack.

4.3 Physical and mechanical properties

The test is carried out under the specified load conditions, and the test object shall be not cracked after the test. The parts are not deformed, no breaks, damage, no wires. Fasteners and connectors are not loose. The connector, magnetic fastener, etc. can be in normal shape without abnormalities. The lock is normal, the password lock is not stuck, without hop number, detachment, chaos or out of control. 2 Lock durability a Can be used normally after the test, no abnormalities. 3 Fastener durability Can be used normally after the test, no abnormalities. […]

5.1 Raw materials and accessories

Before processing and production, inspect or verify according to relevant standards, the limit of harmful substances shall be tested according to GB 20400, GB 19340, GB 21550, GB/T 2912. 1 and GB/T 17592.

5.2 Appearance quality

Under natural light, carry out the inspection with visual inspection, sensory inspection together with measuring ruler. The division value of measuring ruler is 1 mm.

5.3 Physical and mechanical properties

5.3.1 Oscillation impact

5.3.1.1 Determination of volume

5.3.1.3 Oscillation impact

According to the load specified in Table 5, the load is evenly placed in the case (bag). Test the strap, carrying handle, side carrying strap in the order of QB/T 2922. The numbers of oscillation impact are as follows: 400 times respectively for double straps, double-carrying handle; 250 times respectively for singlestrap, single-carryinghandle; 150 times for side carrying strap.

The carrying handle (strap) with a total length of less than 120 mm does not check the oscillation impact performance. Simple stacking package does not check oscillation impact performance.

Perform test according to the following:

when testing the strap, adjust the strap to the maximum length;

when testing double straps and double handles, two straps or two handles shall be fixed on the special fixture of the bag oscillation impact tester at the same time;

when the replacement kit is attached to the handbag and knapsack, select the longest part to test;

when the handbag and knapsack has components that can be changed in use (for example, the same component can be used as a single strap and a double strap or a double handle), and the test shall be performed in such a manner that the maximum load and the number of oscillation shocks are specified;

knapsack are overlapped, the single handle shall not check the item;

has a completely independent structure, components (with handles and/or straps), function, and can be used as a back bag alone, the oscillation impact inspection shall be performed.

NOTE 1: Double straps and double handles refer to the same components in the corresponding symmetrical part of the product.

5.3.3 Fastener durability

Inspect according to QB/T 5084. Test 1000 times.

5.3.6 Plastic buckle durability

Inspect according to QB/T 5247. Test 1000 times.

6.2 Exit-factory inspection

Each batch of products shall be inspected one by one before leaving the factory, and may leave factory after being tested.

6.3 Routine type inspection

In any of the following cases, 3 pieces shall be randomly selected from the products that have passed the exit-factory inspection for routine type inspection:

a) great changes in product structure, technique, material;

b) production resumed after discontinued production of more than half a year;

c) required by national quality supervision organization;

d) at least once every half a year during normal production.

6.4 Special type inspection

6.5 Qualification determination

6.5.1 Determination rules for single piece

If one of the harmful material limits and physical and mechanical properties fails, the product is determined as unqualified. If the limit of harmful substances and physical and mechanical properties are all qualified, and there are no more than 3 minor defects in the appearance quality, the product shall be qualified. If the product has a defect that affects the function of the product, the product is determined to be unqualified.

6.5.2 Determination rules for batch

If all the three samples tested meet the requirements for qualified products, the batch of products shall be qualified. If one (or more) fails, double the sample for reinspection. If all the re-inspections are qualified, the batch of products shall be qualified.

7.2 Packaging

The inner and outer packaging of the product shall be made of suitable packaging materials to prevent damage during transport and storage.

7.3 Transport and storage

keep ventilated and dry, moisture-proof, avoid high temperature environment;

keep away from chemicals and liquid erosion;

avoid stamping and marking of sharp objects.

A.2 Requirements

Based on routine type inspection, harmful aromatic amine dyes and free formaldehyde in leather, recycled leather and fabric materials (top layer material, lining) shall comply with the requirements of Table 1.

A.3 Test methods

A.3.1 Sampling

Sampling at the main part of the product. Samples of different materials shall be sampled separately. Samples shall be respective and the sampling shall be recorded in detail in the report.

A.3.2 Inspection

Different materials shall be inspected, respectively. Leather and recycled leather materials shall be inspected according to GB/T 19942 and GB/T 9941, and fabric materials shall be inspected according to GB/T 17592 and GB/T 2912.1.

A.4 Determination for qualification

If one of the inspections does not meet the requirements of Table 1, the product shall be determined as unqualified.
