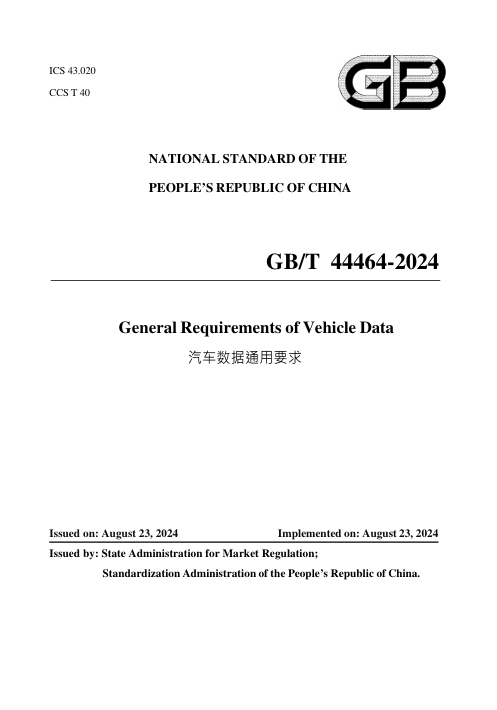

GB/T 44464-2024General Requirements of Vehicle Data (English PDF)

3.1 collect

The act of obtaining vehicle data in a certain mode.

A systematic approach to standardize the process of vehicle data processing activities to ensure vehicle data security.

3.3 cabin data

Data that may contain personal information collected from the car cabin through various means, such as: cameras, infrared sensors, fingerprint sensors or microphones, as well as data generated after processing.

3.4 personal information subject

The natural person identified by personal information.

3.5 face object

The part between the uppermost tip of the eyebrows and the bottom line of the chin, and between the left ear and the right ear (excluding the ears) on the front of a natural person’s head.

3.7 vehicle license plate object

An official motor vehicle license plate installed on a vehicle with a metal base material.

3.9 mask covering rate

The ratio of the anonymization area within the face or license plate boundary frame to the area of the entire boundary frame.

face boundary frame area, the dotted line part is the anonymization area, the shaded part is the overlapping area of the solid line part and the dotted line part, and the mask covering rate is the area ratio of the shaded part to the solid line part.

3.10 detection rate

The percentage of the number of positive detections of face or license plate object to the expected number of detections.

accordance with the requirements of this document.

accordance with the requirements of this document.

3.11 false detection rate

The percentage of the number of false detections of face or license plate object to the number of detected objects.

that do not satisfy the definition of anonymized objects in this document.

4.1 Requirements for Vehicle Data Security Management System

4.1.1 Vehicle data processors shall establish and implement a vehicle data security management system and adopt vehicle data security protection technical measures to ensure that vehicle data is continuously effectively protected and legally used. 4.1.2 Vehicle data processors shall formulate vehicle data security objectives and policies, analyze the internal and external environment of the vehicle data security management system, and determine the boundaries and scope of application of the vehicle data security management system. 4.1.3 Vehicle data processors shall establish a vehicle data security management institution and determine the responsibilities of relevant personnel. 4.1.4 Vehicle data processors shall establish a vehicle data classification and grading system and form a vehicle data asset management ledger. 4.1.5 Vehicle data processors shall formulate specific hierarchical protection requirements and operating procedures for data collection, storage, use, processing, transmission, provision, disclosure, and deletion processes for the entire life cycle of vehicle data. 4.1.6 Vehicle data processors shall at least establish a data security process management system for the entire life cycle of the vehicle, including R&D, design, production and manufacturing, etc. 4.1.7 If vehicle data processors need to store personal information and important data collected and generated within the territory of the People’s Republic of China, it shall be stored within the country; if it needs to be provided overseas, it shall pass the data outbound security assessment. 4.1.8 Vehicle data processors shall establish a vehicle data security risk monitoring and incident management system. When a vehicle data security risk is found, remedial measures shall be immediately taken. When a vehicle data security incident occurs, disposal measures shall be immediately taken, users shall be informed in a timely manner in accordance with regulations, and a report shall be filed to the relevant competent authorities. In addition, in accordance with regulations, risk assessments shall be regularly conducted on important data processing activities, and risk assessment reports shall be submitted to the relevant competent authorities. 4.1. […]

5.2 Individual Consent

5.2.1 General requirements for individual consent

When processing personal information, vehicle data processors shall obtain individual consent; when processing sensitive personal information, separate consent shall be obtained. The above two circumstances shall be notified to individuals in at least one prominent mode, clearly explaining the specific circumstances and necessity of processing personal information, and providing convenient personal information management functions, such as: review, copy and deletion, etc. The specific requirements are as follows. […]

5.2.2 Options for obtaining individual consent

Vehicle data processors shall set up options for obtaining individual consent in accordance with the following requirements:

---Provide modes for consent and refusal;

personal information, and the period shall not be set as always allowed or permanent.

5.2.4 Withdrawal of individual consent

Vehicle data processors shall provide a channel of withdrawing individual consent.

5.3 Collection of Personal Information

5.3.1 When collecting personal information, vehicle data processors shall determine the coverage and resolution of cameras and radars, etc. based on the data accuracy requirements of the functional services provided.

5.3.2 If the same data collection equipment supports multiple functional services with different requirements for data accuracy, at least one functional service shall comply with the requirements of 5.3.1. For other functional services that do not comply with the requirements of 5.3.1, the vehicle data processors shall provide a reasonable explanation.

5.4 Storage of Personal Information

5.4.1 Vehicles shall adopt secure access technology, encryption technology or other security technologies to protect sensitive personal information stored in the vehicle and prevent unauthorized access and acquisition.

5.4.2 Vehicles shall adopt security defense mechanisms to protect the vehicle identification number (VIN) and other data stored in the vehicle for vehicle identification, and prevent unauthorized deletion and modification.

authorization include secure access technology and read-only technology, etc.

5.5 Use of Personal Information

5.5.1 When using personal information, vehicle data processors shall take access control measures to prevent unauthorized access to stored personal information.

5.5.2 Personal biometrics shall not be used as the only means to achieve personal identity authentication.

5.6 Transmission of Personal Information

5.6.1 Requirements for transmission outside the vehicle

5.6.1.1 Vehicles shall implement confidentiality protection measures for sensitive personal information sent outside the vehicle. 5.6.1. […]

5.6.2 Anonymization requirements

5.6.2.1 Anonymization objects

5.6.2.2 Anonymization performance requirements

5.6.2.2.1 Anonymization detection rate

The anonymization detection rate of face object and vehicle license plate object shall be greater than or equal to 90%.

6.1 General Requirements for Important Data Processing

When processing important data, vehicle data processors shall hold clarified and reasonable purposes, which shall be directly related to the purpose of processing. […]

6.2 Important Data Collection

6.2.1 When collecting important data, vehicle data processors shall determine the coverage and resolution of cameras and radars, etc. based on the data accuracy requirements of the functional services provided.

6.2.2 If the same data collection equipment supports multiple functional services with different requirements for data accuracy, at least one functional service shall comply with the requirements of 6.2.1. For other functional services that do not comply with the requirements of 6.2.1, the vehicle data processors shall provide a reasonable explanation.

6.3 Storage of Important Data

Vehicles shall adopt secure access technology, encryption technology or other security technologies to protect important data stored in the vehicle and prevent unauthorized access and acquisition.

6.4 Use of Important Data

When using important data, vehicle data processors shall take access control measures to prevent unauthorized access to stored important data.

6.5 Transmission of Important Data

Vehicles shall implement confidentiality protection measures for important data sent outside the vehicle.

6.6 Deletion of Important Data

Deleted important data shall be irretrievable and inaccessible.

A.1 Principles of Data Classification and Grading

The principles for the classification and grading of vehicle data are as follows.

---Compliance: comply with national laws and regulations and relevant provisions of relevant competent authorities; comply with relevant requirements in the standards for data security management in the field of industry and information technology.

multi-dimensional characteristics of the data and the logical relations that objectively exist among them.

---Practicality: make sure that there is data under each category and no meaningless categories are set up.

---Scalability: it is general and inclusive, and can realize the classification and grading of various types of data to satisfy the data types and data levels that may appear in the future.

---Salience: in accordance with the salient features of the data content, determine the classification scheme of data.

---Timeliness: it has a certain validity period and can be adjusted in a timely manner.

security requirements apply to data of the same level.

A.2 Data Classification

Vehicle data processors classify the data generated and collected during the R&D, design, production and manufacturing of automotive products in accordance with the requirements of relevant laws, regulations and standards.

A.3 Data Classification

A.3.1 Classification elements

A.3.1.2 Affected objects

Affected objects refer to those affected by tampering, destruction, leakage, illegal acquisition, and illegal utilization of data generated and collected during the R&D, design, production and manufacturing processes of automotive products, including national security, industry security, organizational security, and personal rights and interests, among which: ---The situation where the affected object is national security means that once the data is leaked, tampered, destroyed or illegally acquired, it may have an impact on national political security, national economic security, national public security, national resource security, national scientific and technological security and national network security, etc.; […]

A.3.1.3 Degree of impact

The degree of impact can be divided from high to low into serious harm, general harm, minor harm, and no impact. When judging the degree of impact on different affected objects, different criteria are used. […]

B.2 Test Equipment

B.2.1 Test equipment record contents

During the test, additional test recording equipment shall be installed and recorded. At least the following contents shall be recorded:

---Video information of the test vehicle’s surrounding environment.

B.2.2 Accuracy of test recording equipment

The resolution of the test recording equipment shall be no less than (1,920 × 1,080) pixels, and the video sampling frame rate shall be at least 30 f/s.

B.2.3 Installation and operation of test recording equipment

The installation and operation of the test recording equipment shall not affect the original configuration of the test vehicle and the normal operation of its personal information collection and transmission functions.

B.2.4 Requirements for test result annotation capability

B.2.4.1 Requirements for image collections with annotation capabilities

Select 500 anonymized images and 500 non-anonymized images to form an image collection for the verification of annotation capabilities. The image collection shall meet the following requirements.

 Contain at least 200 face objects and 200 vehicle license plate objects;

 Documentation with the true pixel values of each side length of each face object and vehicle license plate object boundary frame;

 Documentation with the true values of the visible range area of each face object.

 Contain at least 200 face objects and 200 vehicle license plate objects that have been anonymized;

 Documentation with the true pixel values of each side length of each face object and vehicle license plate object boundary frame;

 Documentation with the true values of the visible range area of each face object;

 Documentation with the true values of the anonymization area and coverage rate of each face object and vehicle license plate object that have been anonymized;

 There are no identical images in the non-anonymized image collections.
